Components & Components Location: Components

WARNING: This page is about a different car, the 2022 Hyundai Kona N. However, it is still accessible from the selected car via links, so may be relevant.

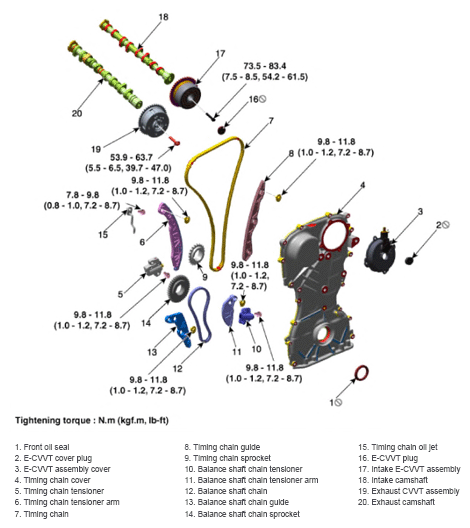

Fig 1: Timing System Components Location With Torque Specification
G16185557Courtesy of HYUNDAI MOTOR AMERICA
