Home >> Hyundai >> 2023 >> Kona N >> Repair and Diagnosis >> Engine Mechanical >> Intake And Exhaust System >> Intercooler >> Components & Components Location >> Components

Components & Components Location: Components

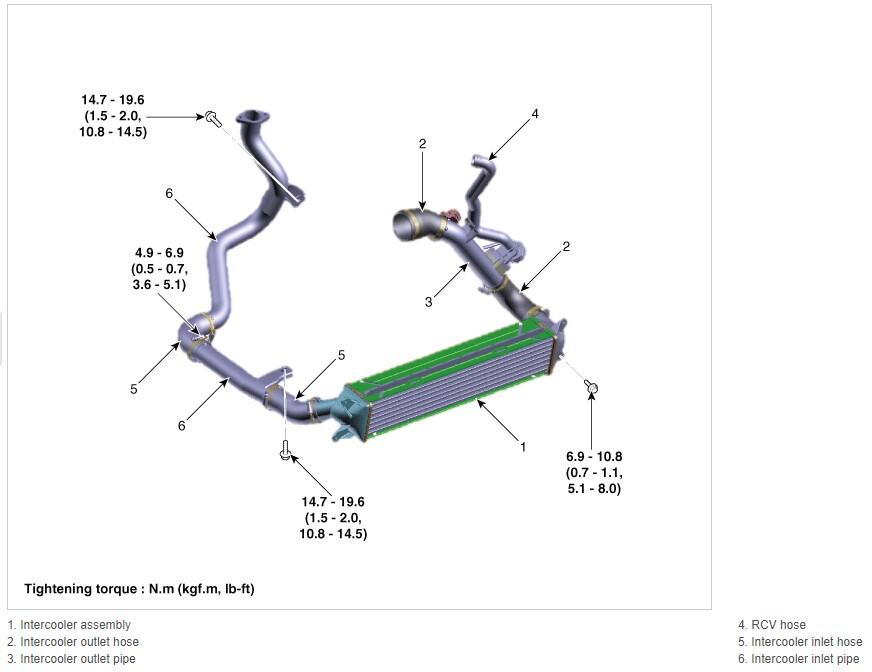

Fig 1: Intercooler Components Location With Torque Specification

G16185814

Courtesy of HYUNDAI MOTOR AMERICA
