Smart Key Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box. (Refer to Body - "GLOVE BOX HOUSING COVER ")

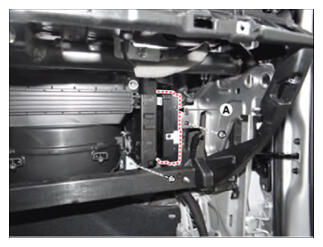

  3. Remove the smart key unit (A), after loosening the bolt and nut.
    G16188319Courtesy of HYUNDAI MOTOR AMERICA

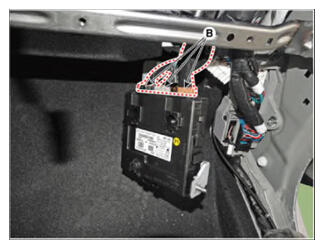

  4. Disconnect the smart key unit connector (B).
    G16188320Courtesy of HYUNDAI MOTOR AMERICA
