Run Out Inspection

  1. Jack up the vehicle.

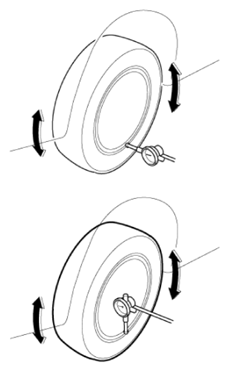

  2. Measure the wheel Run-out by using a dial indicator as illustration below.
    Run-out Aluminum
    Radial mm (in.) Below 0.3 (0.012)
    Axial mm (in.) Below 0.3 (0.012)
    G16186745Courtesy of HYUNDAI MOTOR AMERICA
  3. If measured value exceeds the standard value, replace the wheel.
