Repair Procedures: Removal
- Disconnect the battery (-) terminal.
- Remove the drive belt.
(Refer to Engine Mechanical System - "DRIVE BELT ")
- Remove the alternator "B" terminal tightening nut.

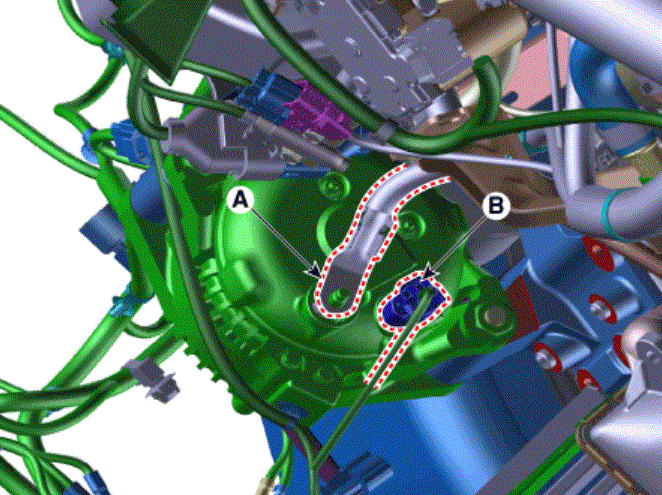

- Disconnect the alternator "B" cable (A) from the alternator "B" terminal.
- Disconnect the alternator connector (B)
Tightening torque:
18.6 - 24.5 N.m (1.9 - 2.5 kgf.m, 13.7 - 18.1 Ib.ft)
- Lift the vehicle.
- Remove the compressor after loosening the mounting bolt.
(Refer to Heating, Ventilation and Air Conditioning - "COMPRESSOR ")

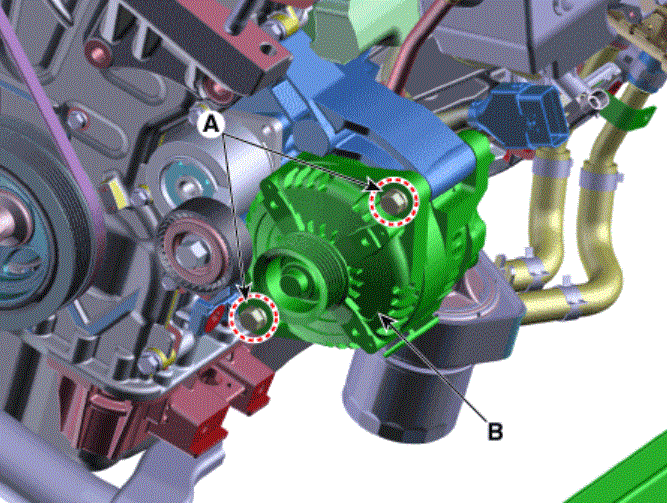

- Remove the alternator (B) after removing the mounting bolts (A).
Tightening torque:
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
