Smart Key Code Saving

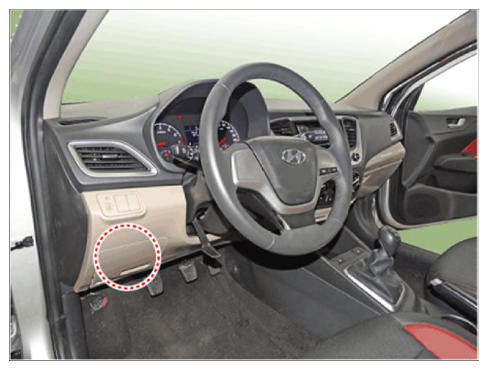

  1. Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.
    G14078614Courtesy of HYUNDAI MOTOR AMERICA

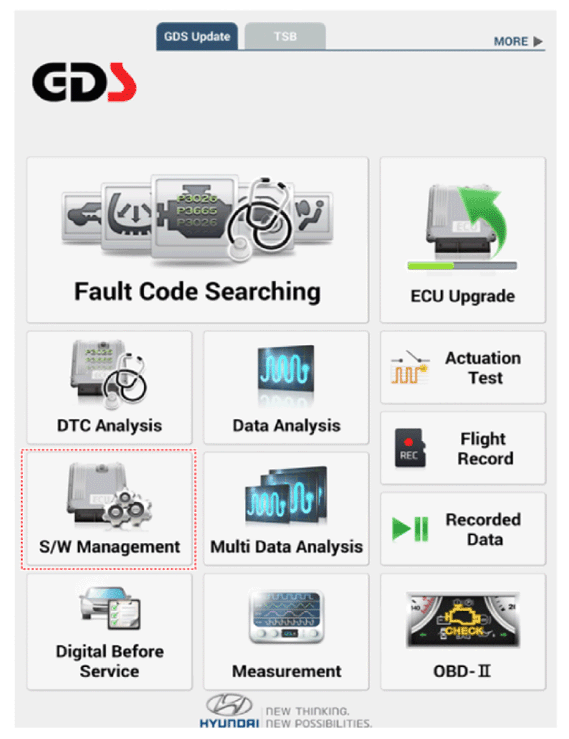

  2. Select the 'S/W Management' and 'Car model'.
    G14078615Courtesy of HYUNDAI MOTOR AMERICA

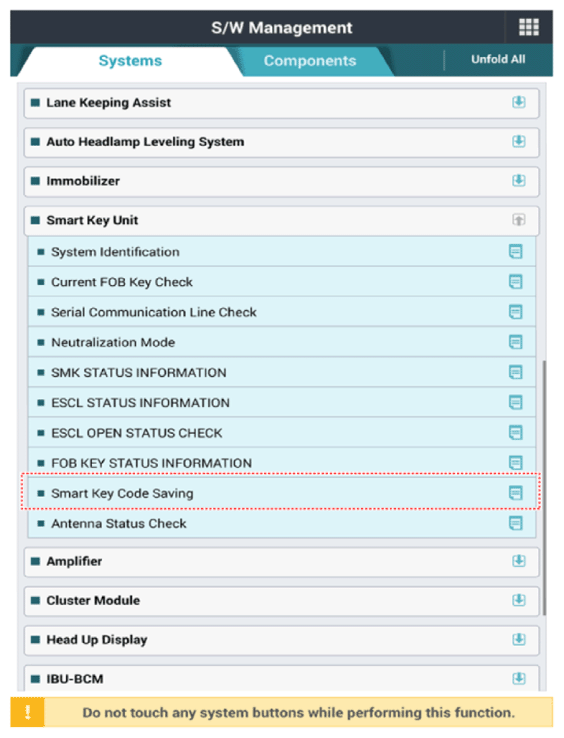

  3. Select the 'Smart Key Unit' and 'Smart Key Code Saving'.
    G14078616Courtesy of HYUNDAI MOTOR AMERICA

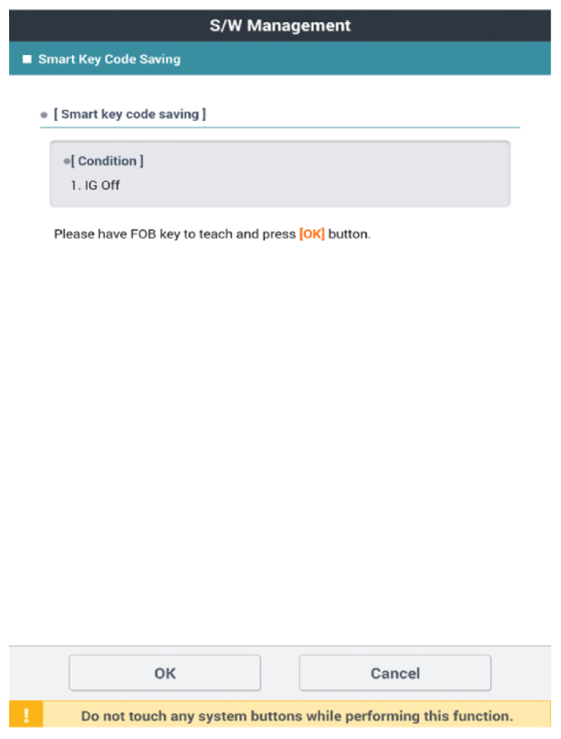

  4. Follow the instructions on the screen.
    G14078617Courtesy of HYUNDAI MOTOR AMERICA
