Home >> Hyundai >> 2021 >> Veloster Turbo >> Repair and Diagnosis >> Engine Mechanical >> Intake And Exhaust System - 1.6L >> Intercooler >> Components And Components Location >> Components

Components And Components Location: Components

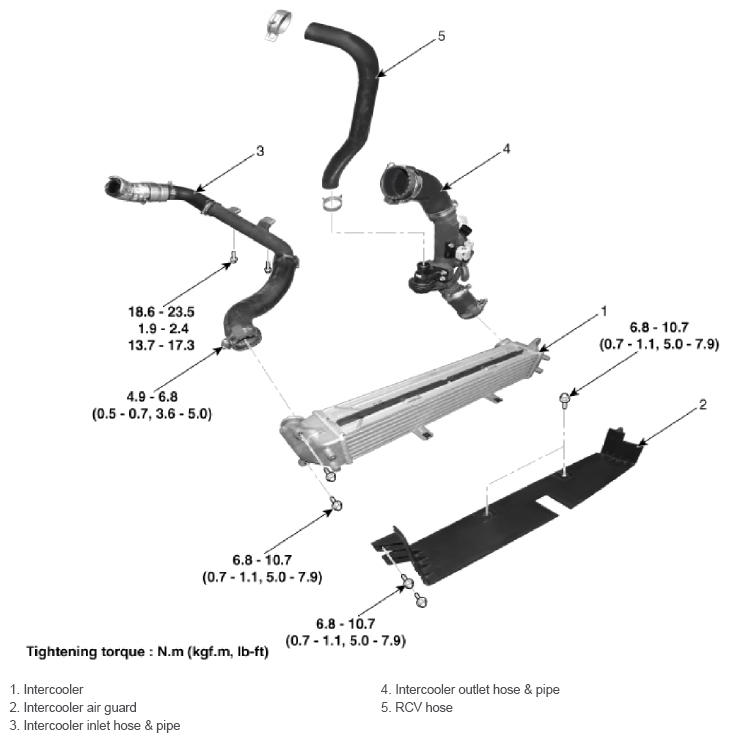

Fig 1: Intercooler Components With Torque Specification

G13052245

Courtesy of HYUNDAI MOTOR AMERICA
