Home >> Hyundai >> 2021 >> Veloster Turbo >> Repair and Diagnosis >> Engine Mechanical >> Intake And Exhaust System - 1.6L >> Intake Manifold >> Components And Components Location >> Components

Components And Components Location: Components

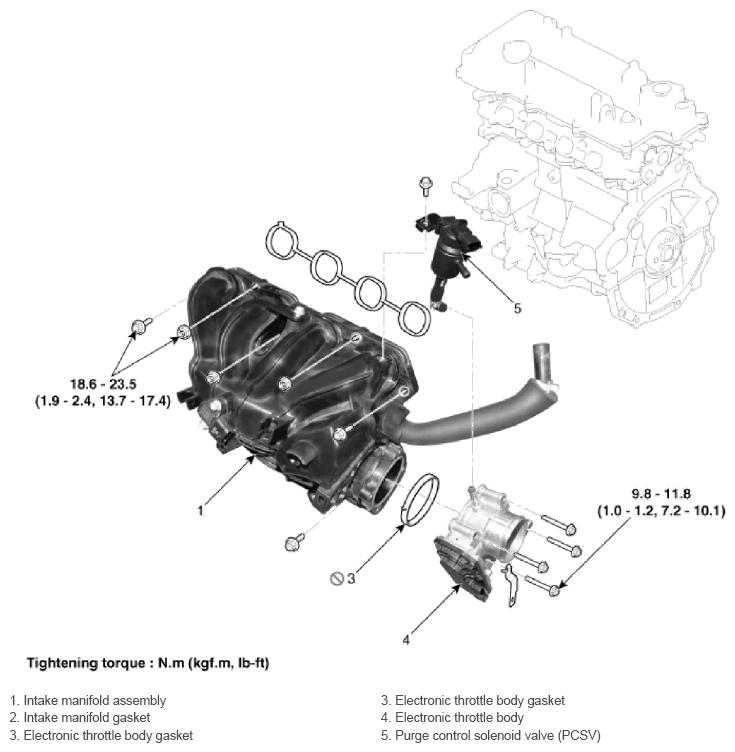

Fig 1: Intake Manifold Components With Torque Specification

G13052220

Courtesy of HYUNDAI MOTOR AMERICA
