Removal and Installation

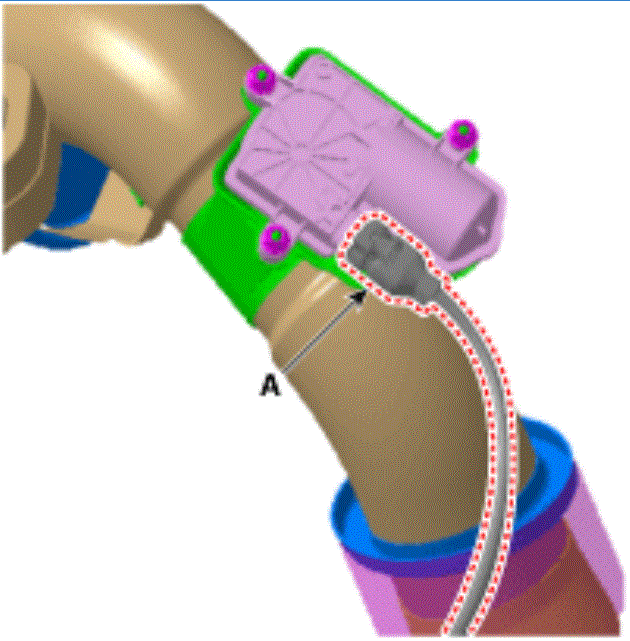

  1. Disconnect the active valve assembly connector (A).
    G15471782Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the main muffler. (Refer to Intake and Exhaust System - "MUFFLER ")

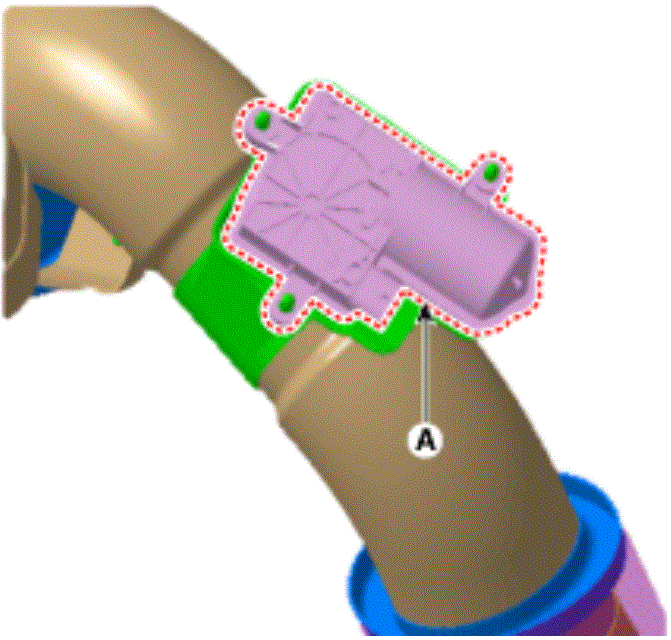

  3. Remove the active valve assembly (A).

    Tightening torque:

    2.5 - 3.5 N.m (0.25 - 0.36 kgf.m, 1.8 - 2.6 lb-ft)

    G15471783Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
