Home >> Hyundai >> 2021 >> Veloster 2.0, Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System - 2.0L >> Oil Pan >> Components & Components Location >> Components

Components & Components Location: Components

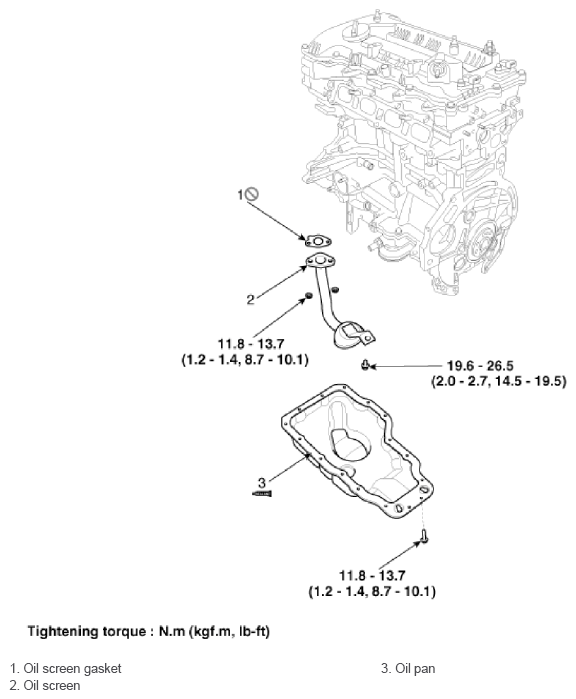

Fig 1: Oil Pan Components Location With Torque Specification

G13055323

Courtesy of HYUNDAI MOTOR AMERICA
