Components And Components Location: Components

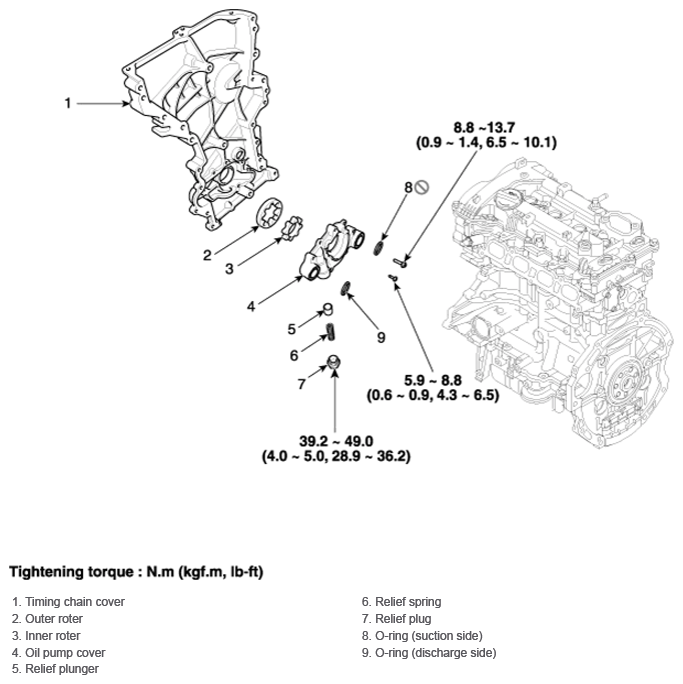

Fig 1: Oil Pump Components With Torque Specification

G13016829

Courtesy of HYUNDAI MOTOR AMERICA
