Components And Components Location: Components

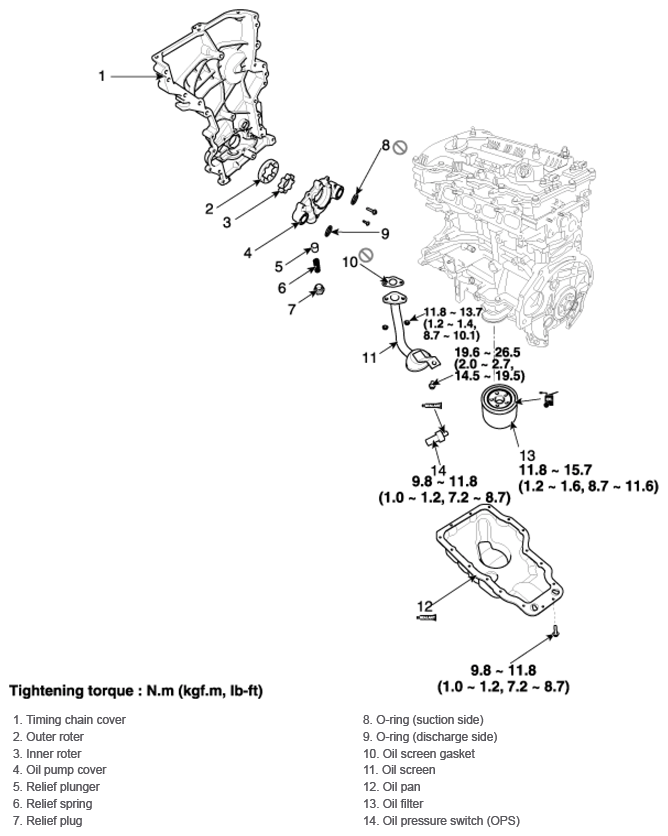

Fig 1: Lubrication System Components With Torque Specification

G13016818

Courtesy of HYUNDAI MOTOR AMERICA
