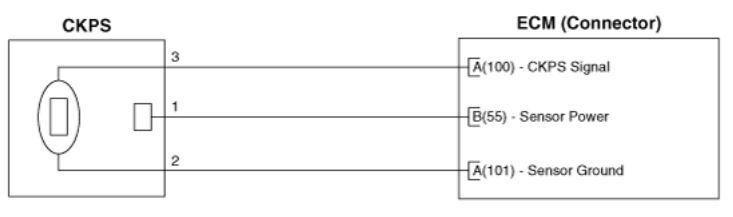

Home >> Hyundai >> 2021 >> Sonata Hybrid Limited >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (HEV) >> Crankshaft Position Sensor (CKPS) >> Schematic Diagrams >> Circuit Diagram >> Notes
