Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

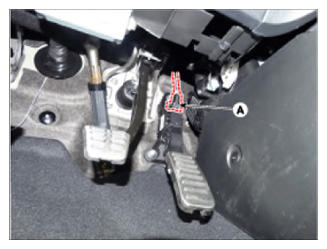

  2. Disconnect the accelerator position sensor connector (A).
    G13563143Courtesy of HYUNDAI MOTOR AMERICA

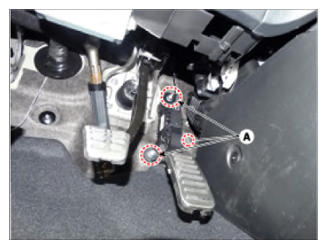

  3. Remove the installation nut (A), and then remove the accelerator pedal module.
    G13563144Courtesy of HYUNDAI MOTOR AMERICA
