Repair Procedures: Inspection

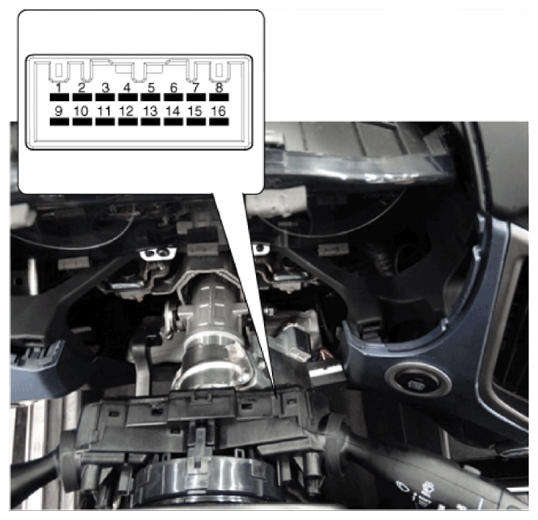

  1. Operate the auto light switch, then check for continuity between terminals of multi-function switch connector.
G14078926Courtesy of HYUNDAI MOTOR AMERICA
Switch Position Switch Terminal Resistance (Ω, ±3.5%)
OFF 9-14 680
AUTO/DRL ∞
Tail lamp 1680
Low beam 1680
