Components And Components Location: Components

WARNING: This page is about a different car, the 2019 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

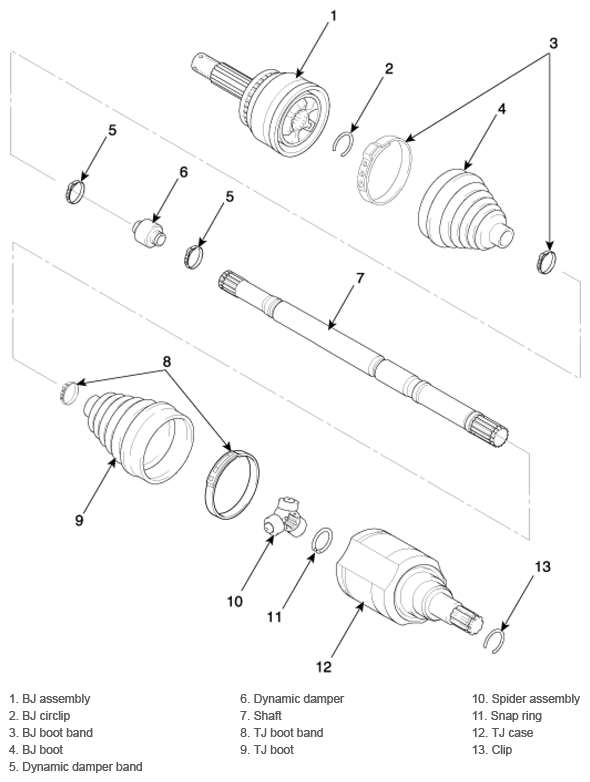

[RH]

G12972798Courtesy of HYUNDAI MOTOR AMERICA

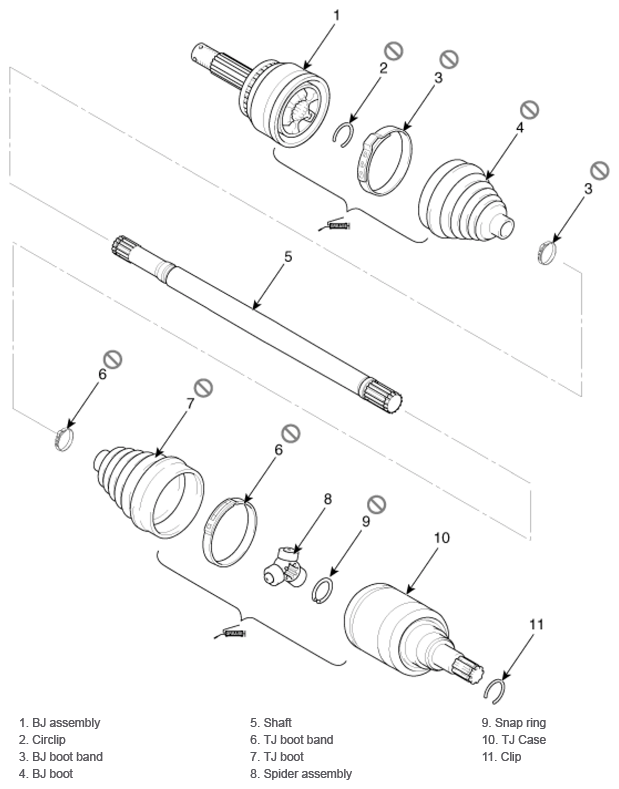

[LH]

G12972799Courtesy of HYUNDAI MOTOR AMERICA
