Repair Procedures: Replacement

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

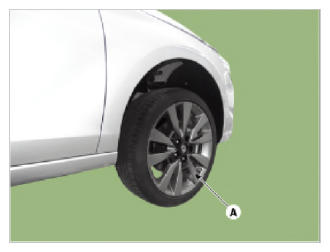

Remove the front wheel and tire (A) from the front hub.
Tightening Torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful not to damage the hub bolts when removing the front wheel and tire (A).
Remove the front brake caliper.
(Refer to Brake System - "FRONT DISC BRAKE ")

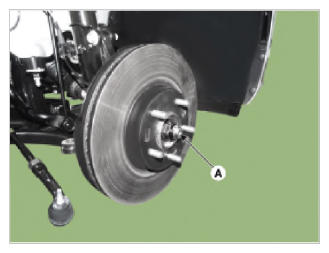

Loosen the driveshaft caulking nut (A).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

After installation driveshaft lock nut, stake the lock nut using a chisel and hammer as displayed in the image below.

Caulking Depth: 1.5 mm (0.591 in.)

Courtesy of HYUNDAI MOTOR AMERICA

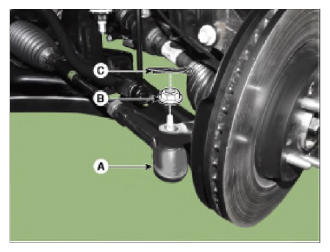

Remove the tie rod end ball joint.

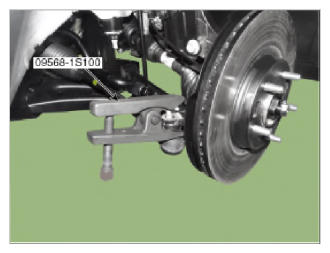

Using SST (09568-1S100), separate the ball joint (A) from the knuckle.

Tightening Torque:

23.5 - 34.3 N.m (2.5 - 3.5 kgf.m, 18.1 - 25.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

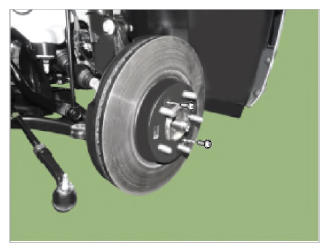

Loosen the screw and then remove the front disc.
Tightening Torque:

4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

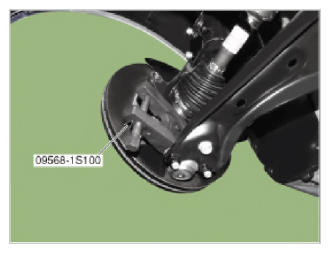

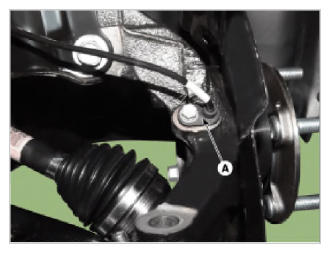

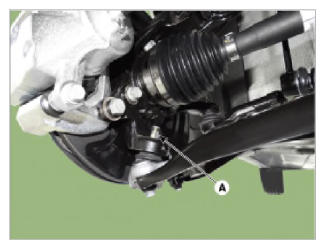

Loosen the lower arm nut (A) and then remove the lower arm ball joint by using SST (09568-1S100).
Tightening Torque:

58.8 - 70.6 N.m (6.0 - 7.2 kgf.m, 43.4 - 52.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Do not reuse the lower arm lock nut (A).

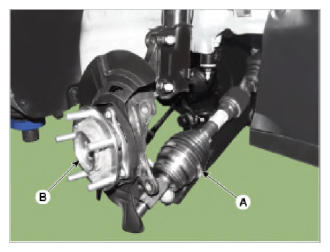

Remove the driveshaft (A) from the front axle assembly (B).

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the bolt and then remove the wheel speed sensor (A).
Tightening Torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

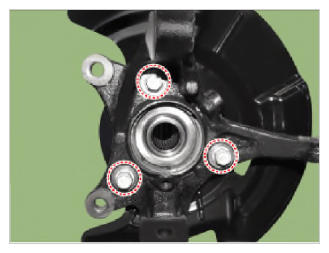

Remove the hub bearing from the front knuckle.
Tightening Torque:

49.1 - 58.9 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

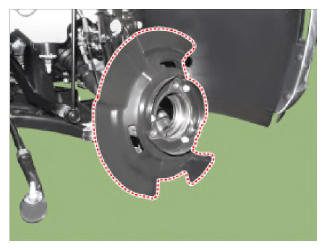

Loosen the mounting bolts and then removal the dust cover.
Tightening Torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

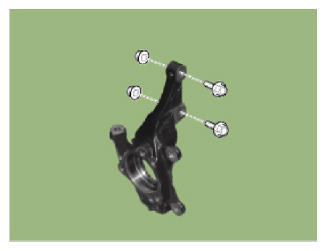

Loosen the strut mounting bolts, nuts and then remove the knuckle assembly.
Tightening Torque:

156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure
Check the Alignment.
(Refer to Suspension System - "ALIGNMENT ")
