Components And Components Location: Components

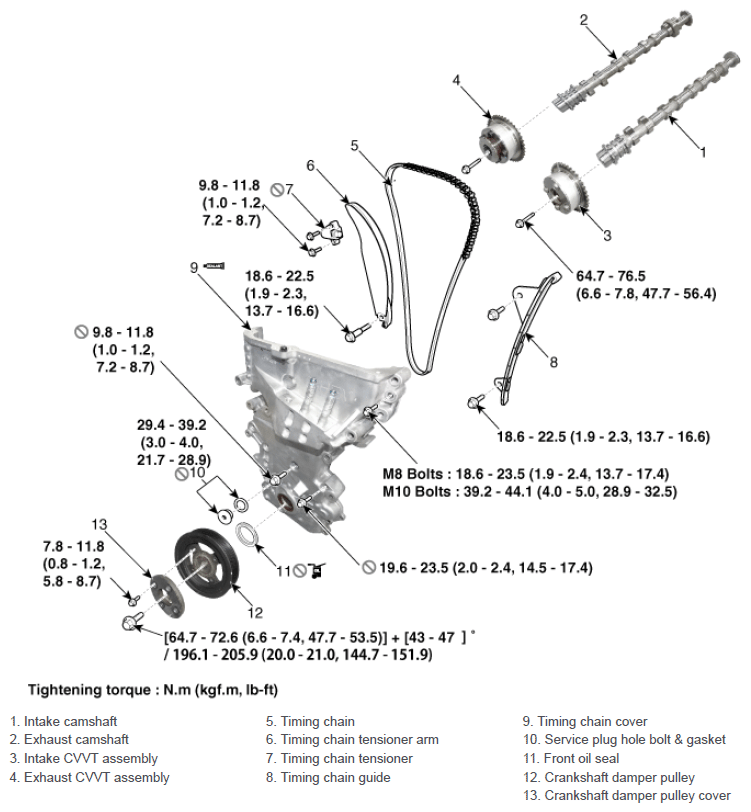

Fig 1: Locating Timing System Components With Torque Specification

G12786500

Courtesy of HYUNDAI MOTOR AMERICA
