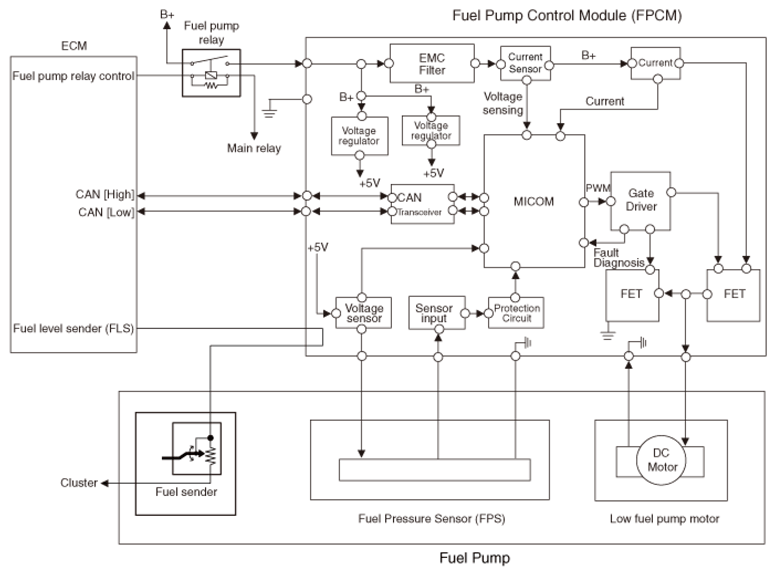

Home >> Hyundai >> 2019 >> Santa Fe SEL Plus, AWD >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System - 2.4L >> Fuel Pump Control Module (FPCM) >> Schematic Diagrams >> Circuit Diagram
