Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

  3. Loosening the IMS unit mounting screws.
    G12730206Courtesy of HYUNDAI MOTOR AMERICA

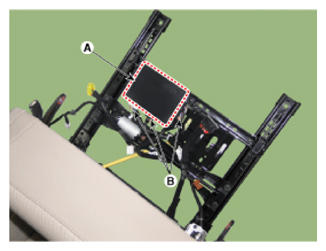

  4. Disconnect the IMS module connectors (B) and then remove the IMS unit (A).
G12730207Courtesy of HYUNDAI MOTOR AMERICA
