Home >> Hyundai >> 2019 >> Elantra Value Edition >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System - 2.0L >> Battery Sensor >> Repair Procedures >> Removal

Repair Procedures: Removal

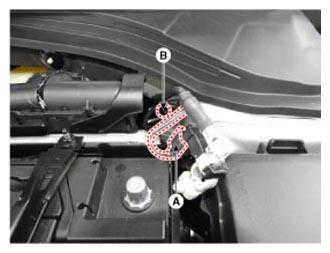

  1. Disconnect the battery negative (-) cable.
  2. Disconnect the battery sensor connector (A).
  3. Remove the battery negative (-) cable after removing the bolts (B).
    G12980764Courtesy of HYUNDAI MOTOR AMERICA
