Home >> Hyundai >> 2019 >> Elantra GT Base >> Repair and Diagnosis >> Brakes >> Traction Control >> Electronic Stability Control (ESC) System >> ESC OFF Switch >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

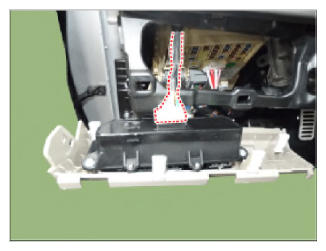

  2. Remove the Crash Pad Lower Panel.

    (Refer to Body - "CRASH PAD ")

    G13032703Courtesy of HYUNDAI MOTOR AMERICA
  3. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
    G13032704Courtesy of HYUNDAI MOTOR AMERICA
