Repair Procedures: Removal

  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.

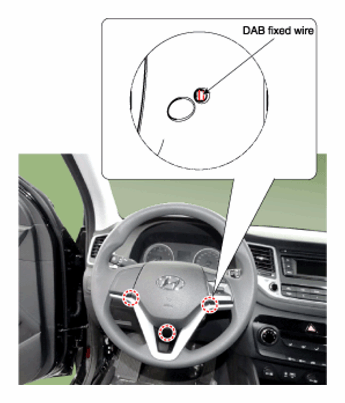

  2. Remove the driver airbag module by putting in a flat tool (Ø5 mm) into the guide hole and then press the fixed wire.
    G12613580Courtesy of HYUNDAI MOTOR AMERICA

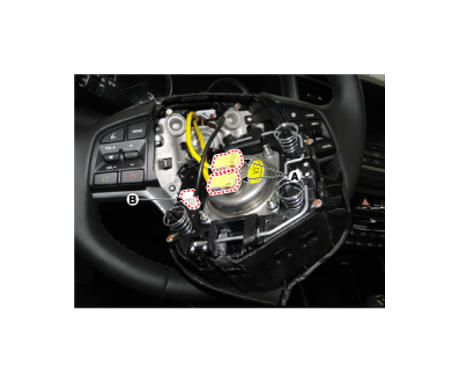

  3. Disconnect the horn connector (B).
    G12613581Courtesy of HYUNDAI MOTOR AMERICA
  4. Release the connector locking pin, then disconnect the driver airbag module connector (A).
    G12613582Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover facing up.

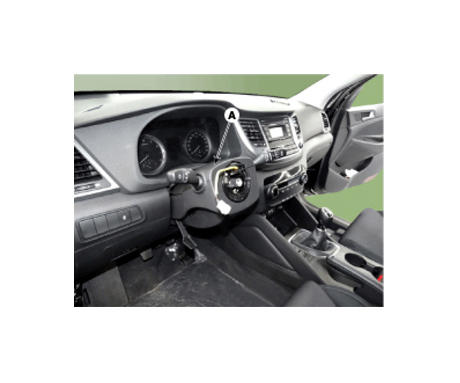

  5. Remove the steering wheel and steering wheel column shroud (A).

    (Refer to Steering System - "REPAIR PROCEDURES and MOTOR DRIVEN POWER STEERING ")

    G12613583Courtesy of HYUNDAI MOTOR AMERICA

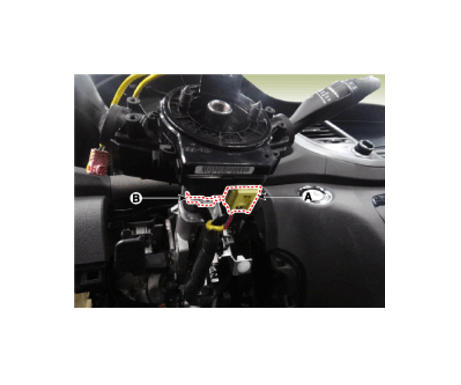

  6. Disconnect the clock spring (A) and horn connector (B), then remove the clock spring.
    G12613584Courtesy of HYUNDAI MOTOR AMERICA
