Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

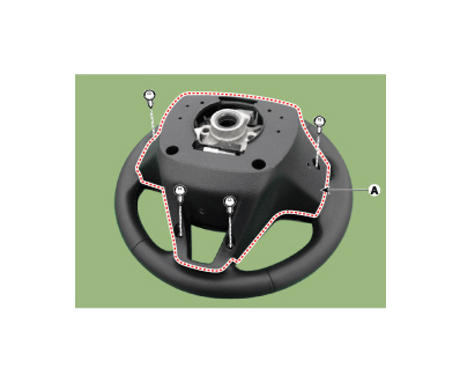

  3. Remove the screws from the steering back cover (A).
    G12614424Courtesy of HYUNDAI MOTOR AMERICA

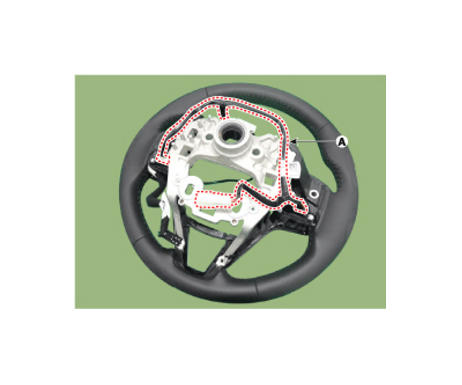

  4. Remove the steering remote control connector (A).
    G12614425Courtesy of HYUNDAI MOTOR AMERICA

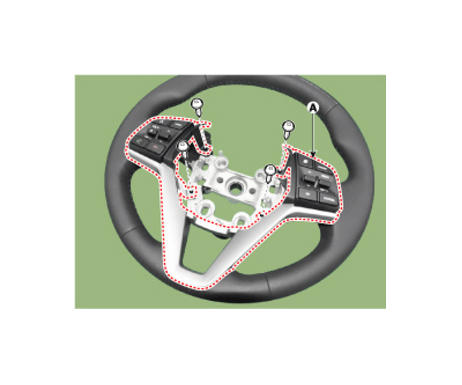

  5. Remove the steering remote control (A) after loosening the screws.
    G12614426Courtesy of HYUNDAI MOTOR AMERICA
