Repair Procedures: Inspection

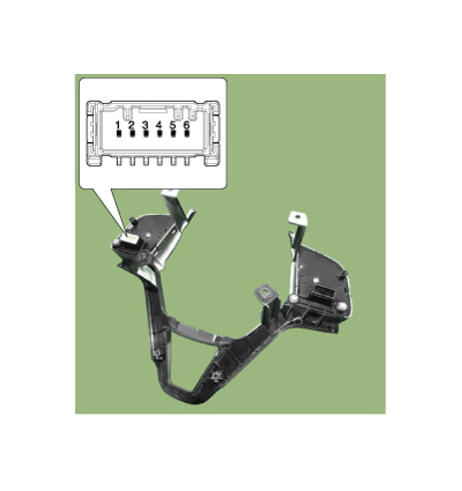

- Check for resistance between terminals in each switch position (LH).RESISTANCE REFERENCE (LH; AUDIO + HANDS FREE)
Switch Connector Terminal Resistance

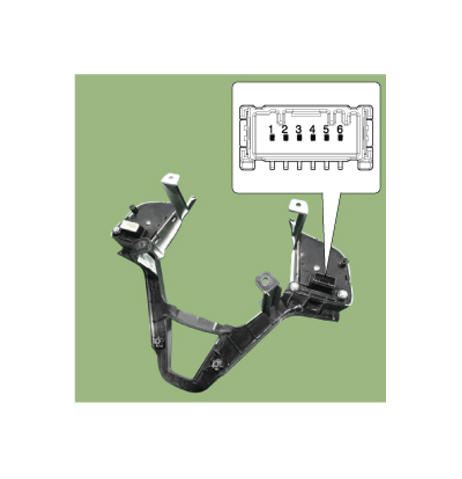

(± 5%)SEEK Up 2 - 5 430Ω SEEK Down 1.11 kΩ MODE 2.11 kΩ MUTE 3.11 kΩ Volume (+) 4.61 kΩ Volume (-) 6.81 kΩ Voice 10.71 kΩ SEND 18.91 kΩ END 40.91 kΩ - Check for resistance between terminals in each switch position (RH).RESISTANCE REFERENCE (RH; TRIP + CRUISE)
Switch Connector Terminal Resistance
(± 5%)Cancel 3 - 5 330Ω SET - 550Ω RES + 880Ω Cruise ON/OFF 1.44 kΩ Group 2 - 5 550Ω Trip Up 880Ω Trip Down 1.44 kΩ ENTER 2.54 kΩ
