Driver Power Window Switch

CAUTION:
  • Be careful not to scratch the door trim and other parts.
  • Use caution in keeping and handling during disassembling/assembling because it is easily contaminated with lubricant and oil.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

  3. Remove the power window switch assembly after disengaging the mounting clips.

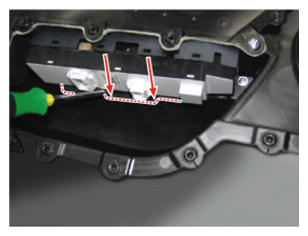

    G12640921Courtesy of HYUNDAI MOTOR AMERICA

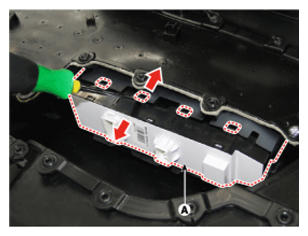

    G12640922Courtesy of HYUNDAI MOTOR AMERICA

    Information

    • Replace any damaged clips.
      G12640923Courtesy of HYUNDAI MOTOR AMERICA
      G12640924Courtesy of HYUNDAI MOTOR AMERICA
