Smart Key Code Saving

  1. Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.
    G12640576Courtesy of HYUNDAI MOTOR AMERICA

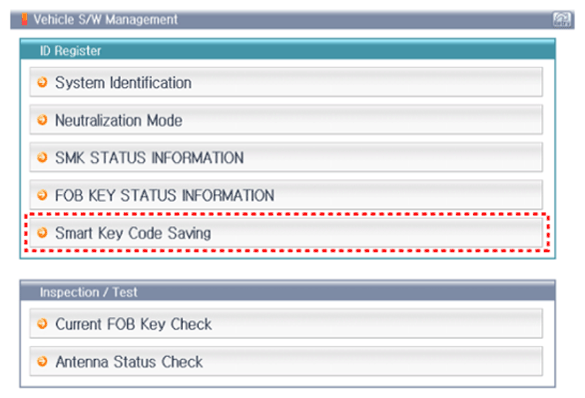

  2. Select the vehicle model and then do "Smart Key Code Saving".
    G12640577Courtesy of HYUNDAI MOTOR AMERICA

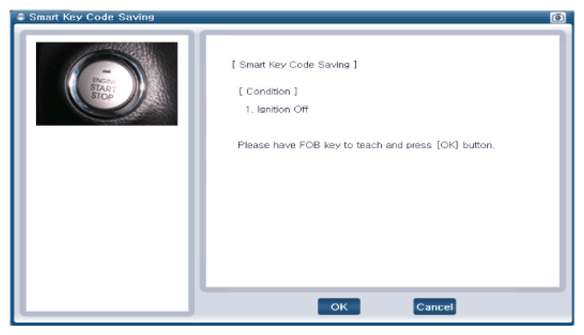

  3. After selecting "Smart Key Teaching" menu, push "ENTER" key, then the screen will be shown as below.
    G12640578Courtesy of HYUNDAI MOTOR AMERICA
  4. After having the teaching smart key, push "ENTER" key.

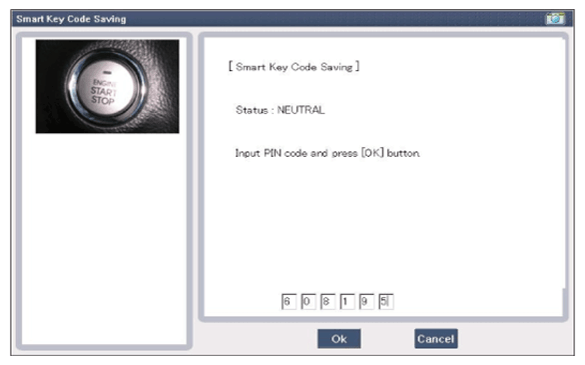

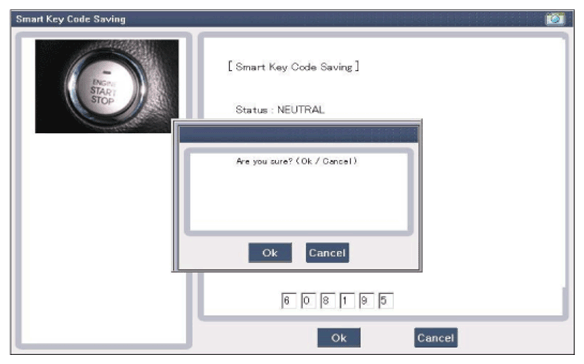

  5. Input the "Pin Code" for first key teaching.
    G12640579Courtesy of HYUNDAI MOTOR AMERICA
    G12640580Courtesy of HYUNDAI MOTOR AMERICA

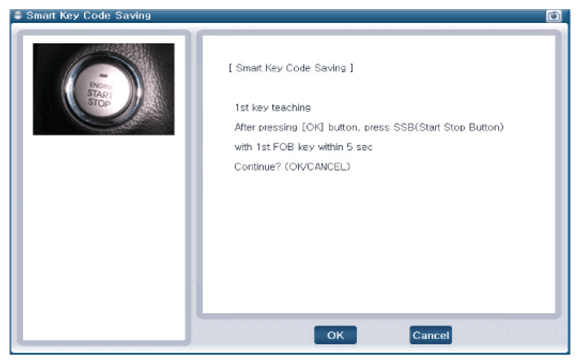

  6. Press the SSB with smart key within 5 sec after pressing "OK".
    G12640581Courtesy of HYUNDAI MOTOR AMERICA
  7. Confirm the message "First Key Teaching Completed".
    G12640582Courtesy of HYUNDAI MOTOR AMERICA
  8. Press the SSB with smart key within 5 sec after pressing "OK".
    G12640583Courtesy of HYUNDAI MOTOR AMERICA

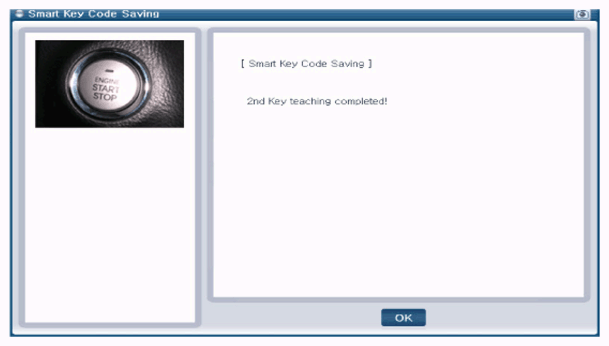

  9. Confirm the message "Second Key Teaching Completed".
    G12640584Courtesy of HYUNDAI MOTOR AMERICA

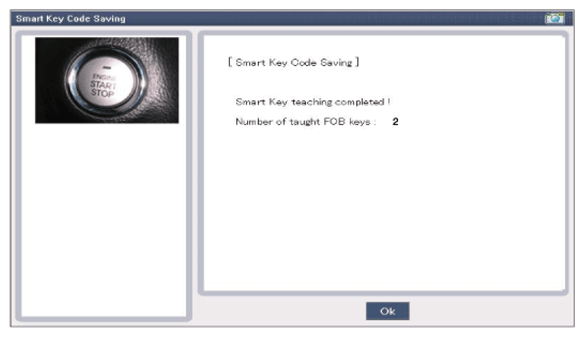

  10. Then the screen will be shown as below when key teaching process is completed.
    G12640585Courtesy of HYUNDAI MOTOR AMERICA
