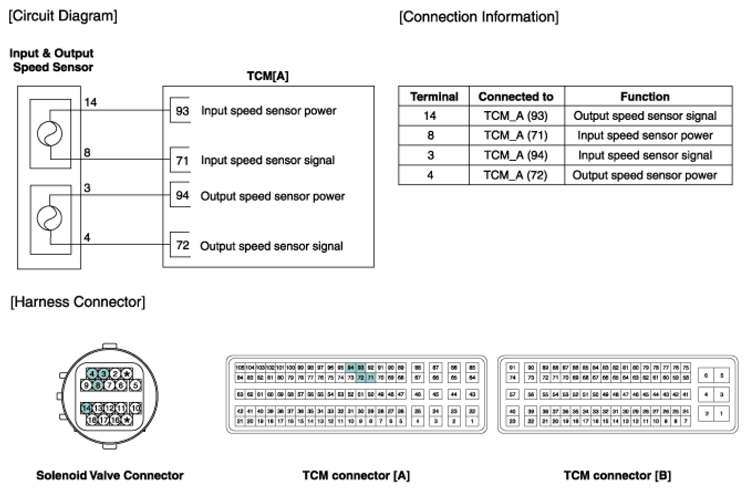

Home >> Hyundai >> 2018 >> Sonata Hybrid Limited >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System (HEV) >> Input Speed Sensor >> Schematic Diagrams >> Circuit Diagram
