Home >> Hyundai >> 2018 >> Ioniq Plug-In Hybrid >> Repair and Diagnosis >> Hybrid/Electric Powertrain >> Electric Converters and Controllers >> Hybrid Control System (PHEV) >> HPCU (Hybrid Power Control Unit) >> Components And Components Location >> Components

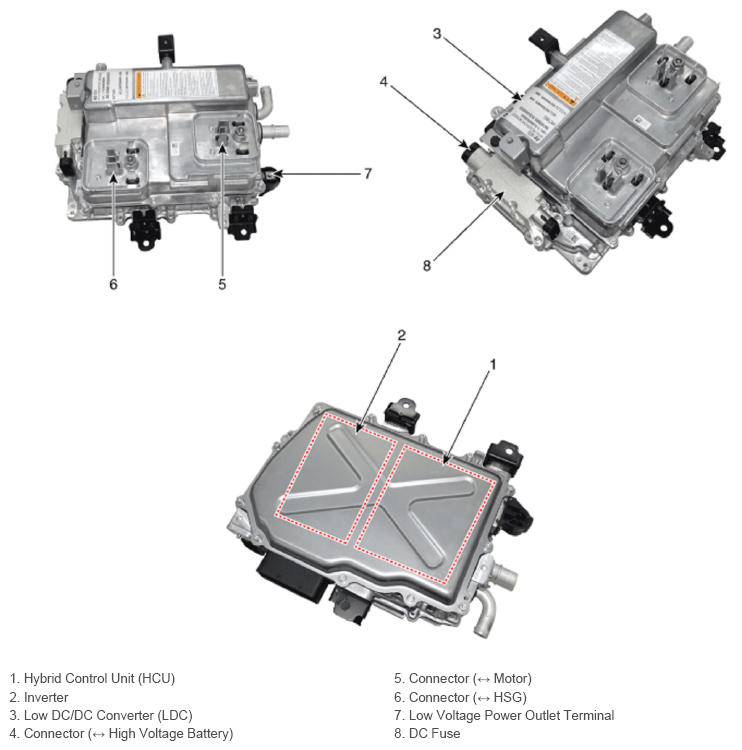

Components And Components Location: Components

G12758710

Courtesy of HYUNDAI MOTOR AMERICA
