Repair and Diagnosis
>>
Hybrid/Electric Powertrain
>>
Electric Converters and Controllers
>>
Hybrid Control System (PHEV)
>>
Components And Components Location
>>
Component Location
Component Location
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:

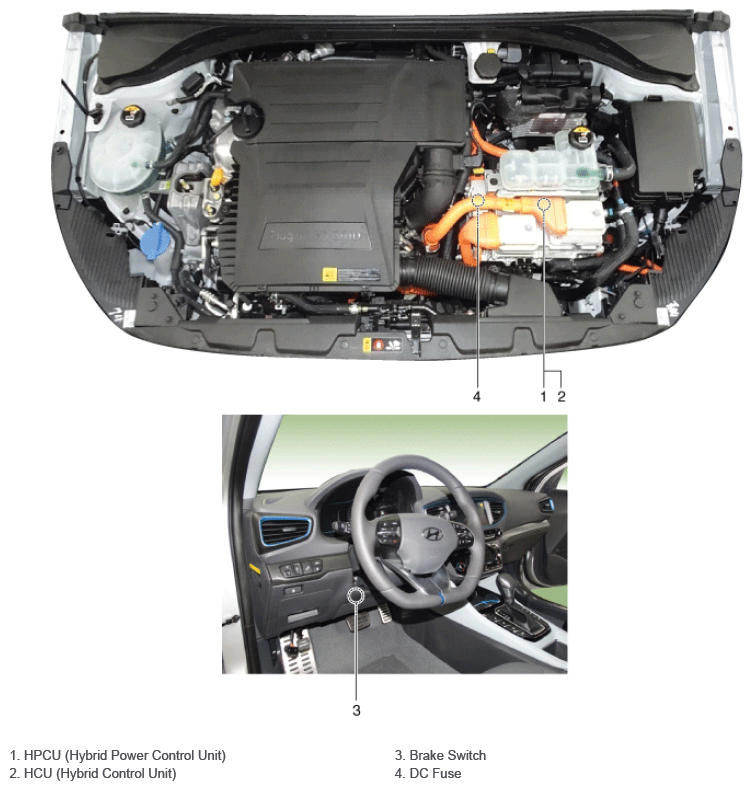

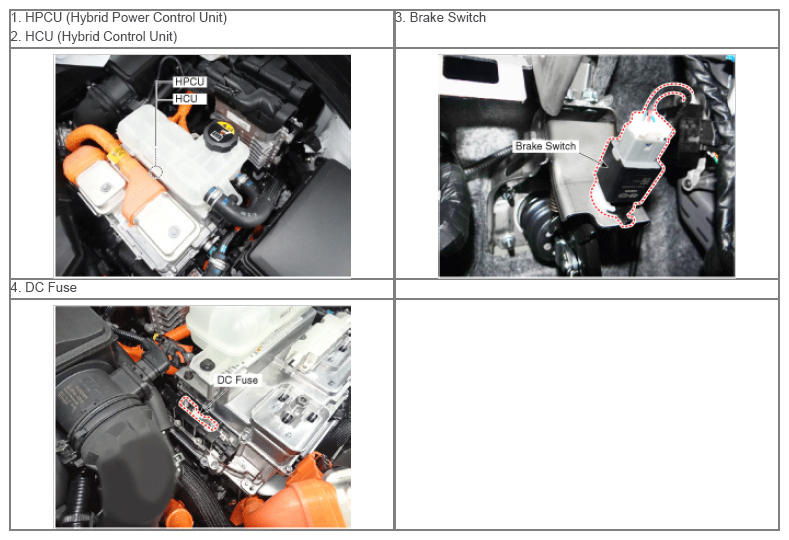

HPCU includes the HCU (Hybrid Control Unit), Inverters (for Drive Motor, HSG and Electric A/C Compressor), MCU (Motor Control Unit) and LDC (Low DC/DC Converter).
NOTE:
For the location of the other control modules, refer to the relevant group.
