Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

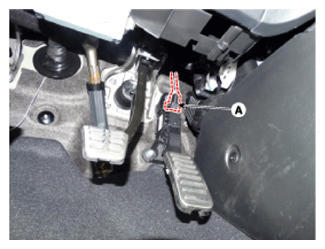

  2. Disconnect the accelerator position sensor connector (A).
    G12727286Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the installation nut (A), and then remove the accelerator pedal module.
    G12727287Courtesy of HYUNDAI MOTOR AMERICA
