Components Location

WARNING: This page is about a different car, the 2017 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

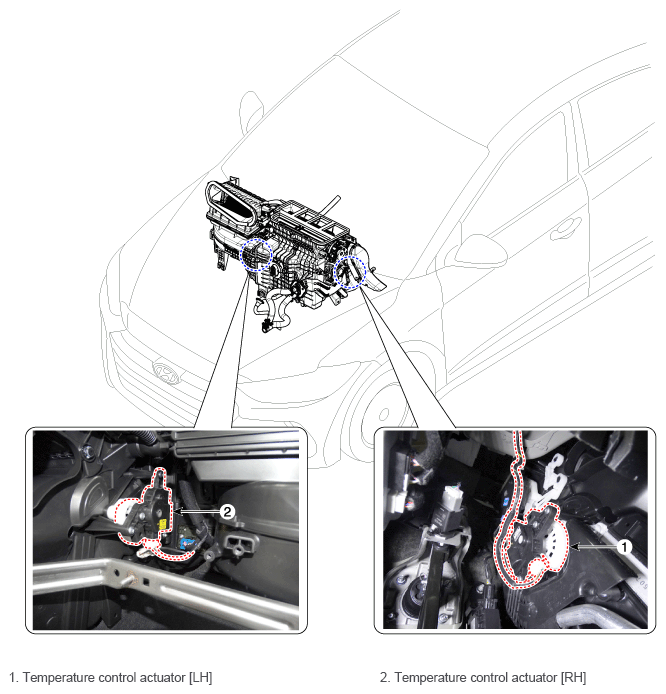

Fig 1: Temperature Control Actuator Components
G12024301Courtesy of HYUNDAI MOTOR AMERICA
