Heater Unit: Components

WARNING: This page is about a different car, the 2017 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

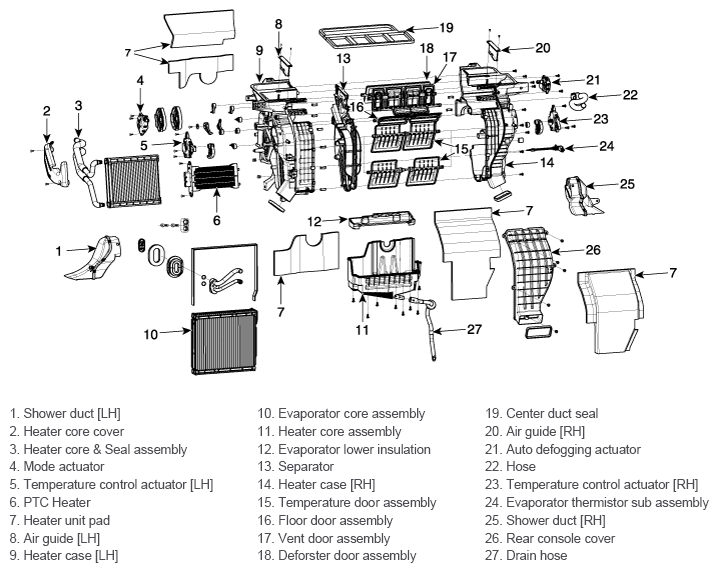

Fig 1: Exploded View Of Heater Unit
G12024265Courtesy of HYUNDAI MOTOR AMERICA
