Idle Stop & Go (ISG) System
>>
Components And Components Location
>>
Components Location
Components Location

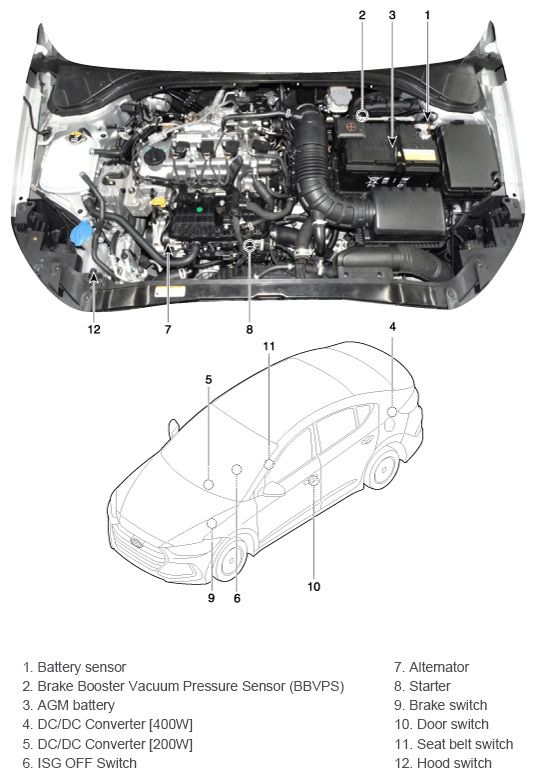

Fig 1: Idle Stop & Go System Components (1 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

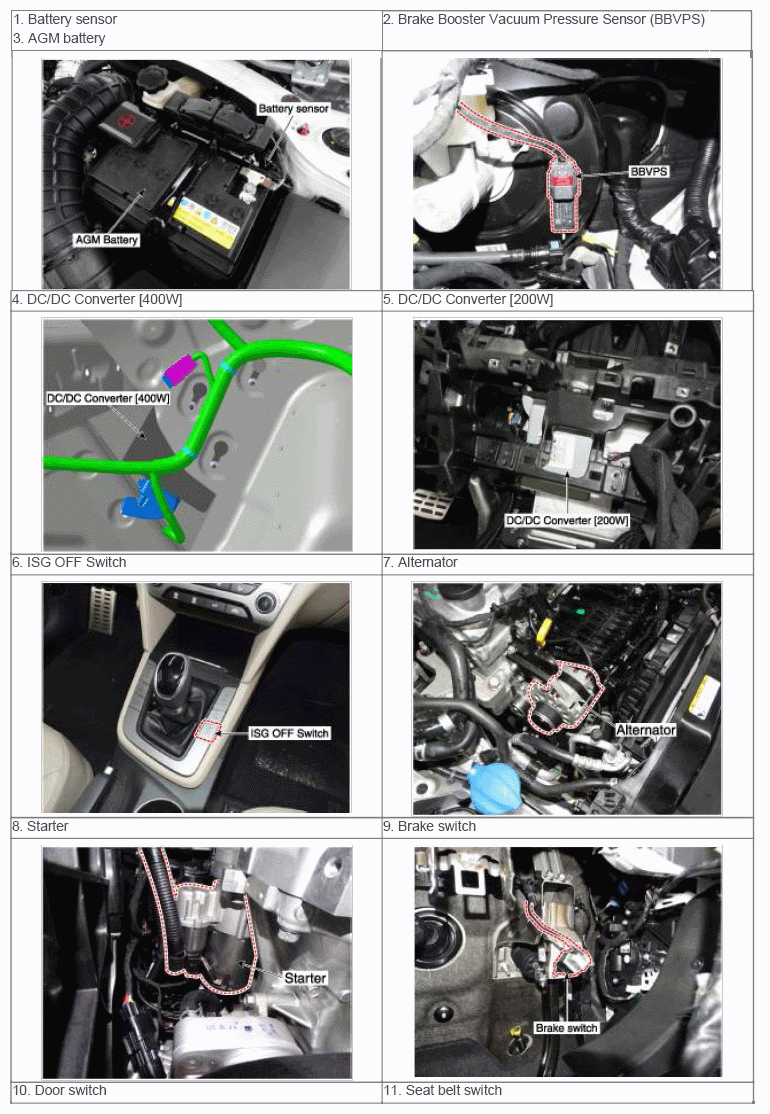

Fig 2: Idle Stop & Go System Components (2 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

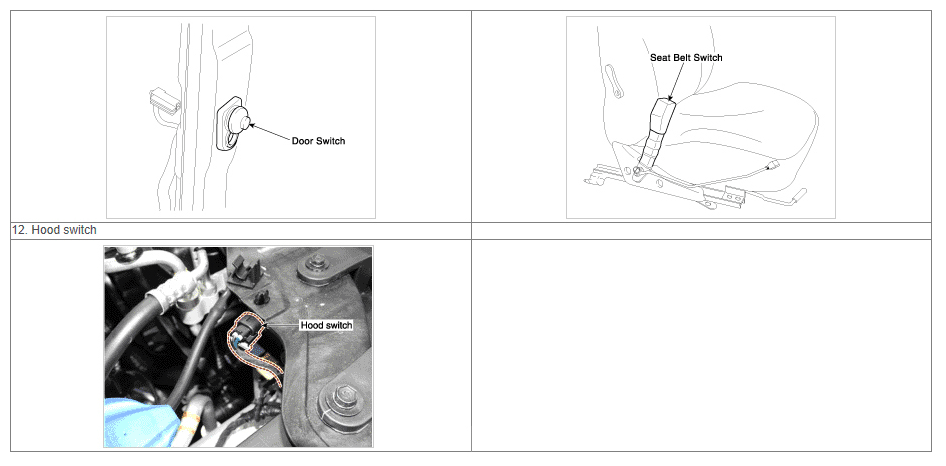

Fig 3: Idle Stop & Go System Components (3 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
