Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Turn the ignition switch OFF, and then remove battery (-) terminal.

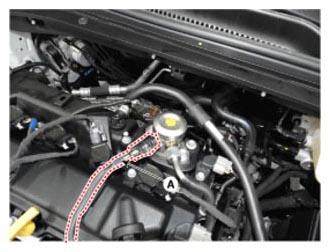

  3. Disconnect the fuel feed tube quick-connector (A).
    G12646624Courtesy of HYUNDAI MOTOR AMERICA
    NOTE: Open the clamp cover (B) before disconnect the quick connector. (If the clip is applied)
    G12646625Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: When removing the quick-connnector with the clip removing tool (A), be careful not to damage the plastic clip (B).
    If the clip is damaged, fuel line leak can be occurred due to a bad connection.
    G12646626Courtesy of HYUNDAI MOTOR AMERICA

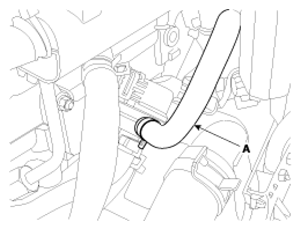

  4. Disconnect the vapor hose (A) which is connected from the PCSV.
    G12646627Courtesy of HYUNDAI MOTOR AMERICA
  5. Lift the vehicle.
  6. Remove the fuel tank.

    (Refer to Fuel Delivery System - "FUEL TANK ")

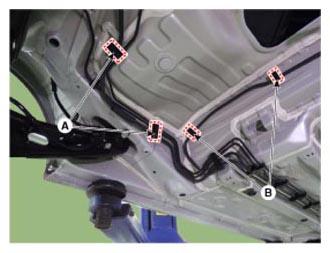

  7. Remove the vapor tube line fixing clip (A).
  8. Remove the feed line fixing clip (B).
    G12646628Courtesy of HYUNDAI MOTOR AMERICA

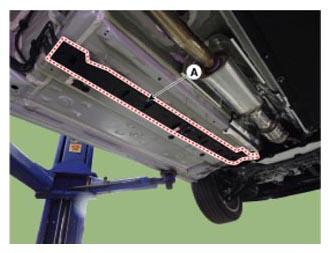

  9. Remove the fuel and brake line protector (A).
    G12646629Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the fuel line (A).
    G12646630Courtesy of HYUNDAI MOTOR AMERICA
