Repair Procedures: Removal

  1. Loosen the wheel nuts slightly.

    Raise the vehicle, and make sure it is securely supported.

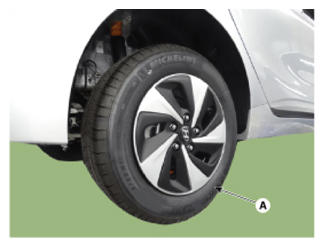

  2. Remove the rear wheel and tire (A) from front hub.
    G12644570Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Be careful not to damage the hub bolts when removing the rear wheel and tire (A).

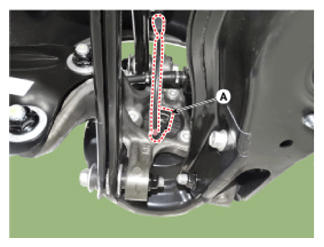

  3. Disconnect the rear wheel speed sensor connector (A).
    G12644571Courtesy of HYUNDAI MOTOR AMERICA

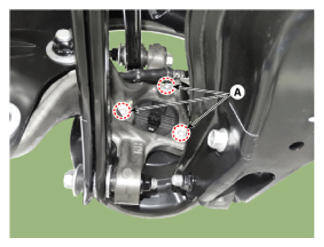

  4. Loosen the bolts (A) and then remove the hub bearing.
    G12644572Courtesy of HYUNDAI MOTOR AMERICA
  5. To install, reverse the removal procedure.
