Engine Starting System - 1.6L: Troubleshooting

NOTE:
  • The battery must be in good condition and fully charged for this troubleshooting.

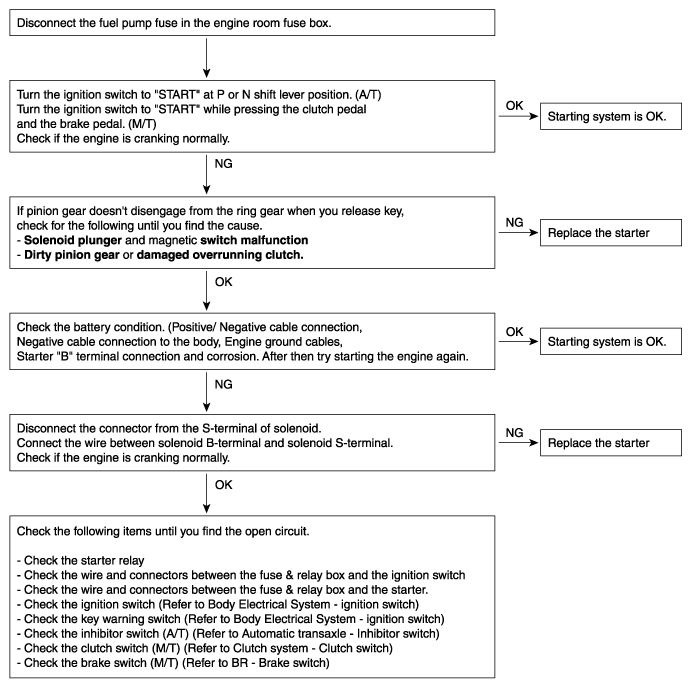

Fig 1: Starting System Troubleshooting Chart
G12039238Courtesy of HYUNDAI MOTOR AMERICA
