Components (2)

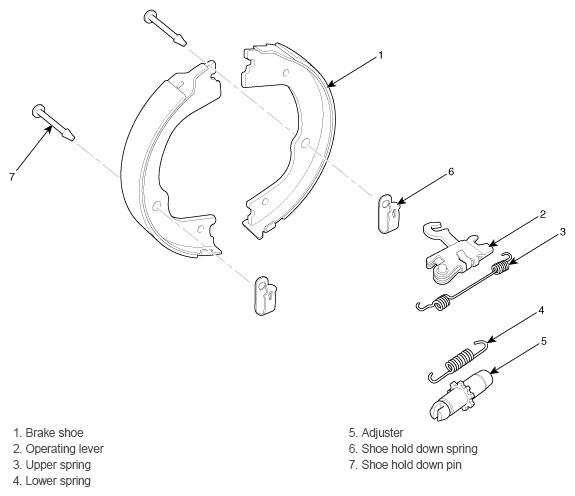

Fig 1: Parking Brake System Components (2)

G12041526

Courtesy of HYUNDAI MOTOR AMERICA
