Projected Dimensions

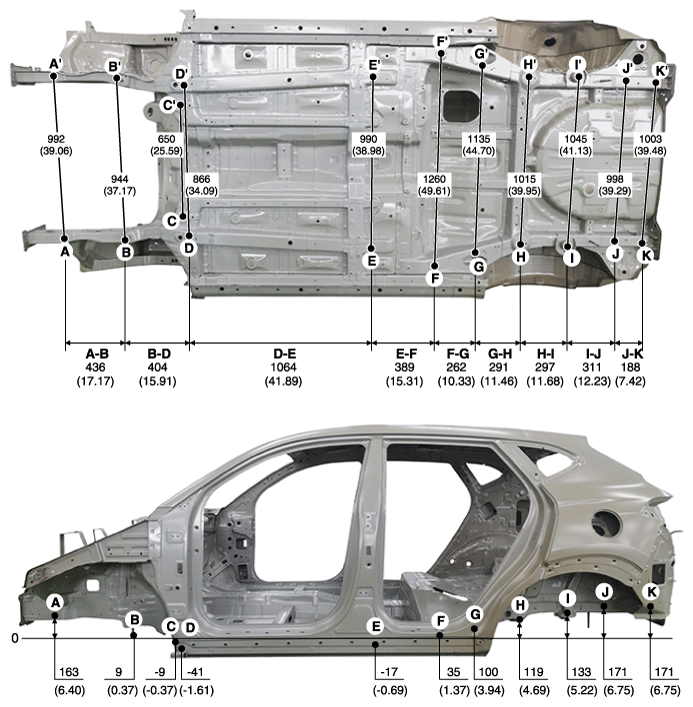

Fig 1: Under Body Projected Dimensions
G12041989Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this figure above are actual-measurement dimensions. [Unit: mm (inch)]
