Rear Power Window Motor

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim. (Refer to Body - "Rear Door Trim ")
  3. Disconnect the motor connector from the motor.
    Fig 1: Motor Connector Location and Connector End View
    G11633102Courtesy of HYUNDAI MOTOR AMERICA
  4. Connect the motor terminals No. 1 and No. 2 directly to battery voltage (12V) and check that the motor operates smoothly. If the operation is abnormal, replace the motor.

    [Safety window motor]

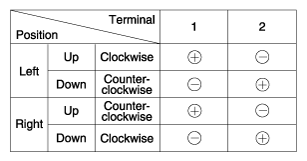

    Fig 2: Safety Window Motor Connector Terminals Continuity Chart
    G11633103Courtesy of HYUNDAI MOTOR AMERICA
