Driver Power Window Switch

WARNING: This page is about a different variant/trim than selected.

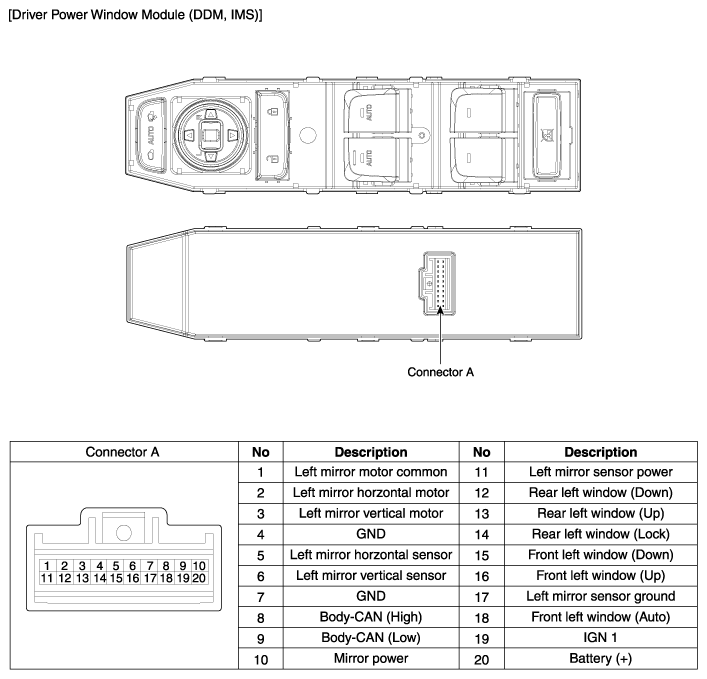

Fig 1: Driver Power Window Switch Connector Terminals Description Chart (1 Of 2)
G12062863Courtesy of HYUNDAI MOTOR AMERICA

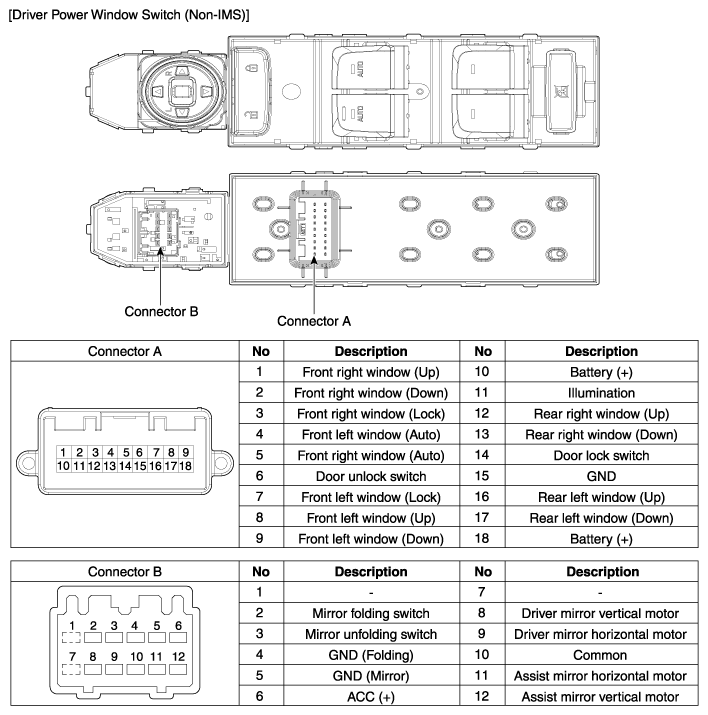

Fig 2: Driver Power Window Switch Connector Terminals Description Chart (2 Of 2)
G12062864Courtesy of HYUNDAI MOTOR AMERICA
