Section 130 (Power Windows (HEV))
>>
Power Window Switch
>>
Components And Components Location
>>
Components
>>
Assist Power Window Switch
Assist Power Window Switch
WARNING:
This page is about a different variant/trim than selected.

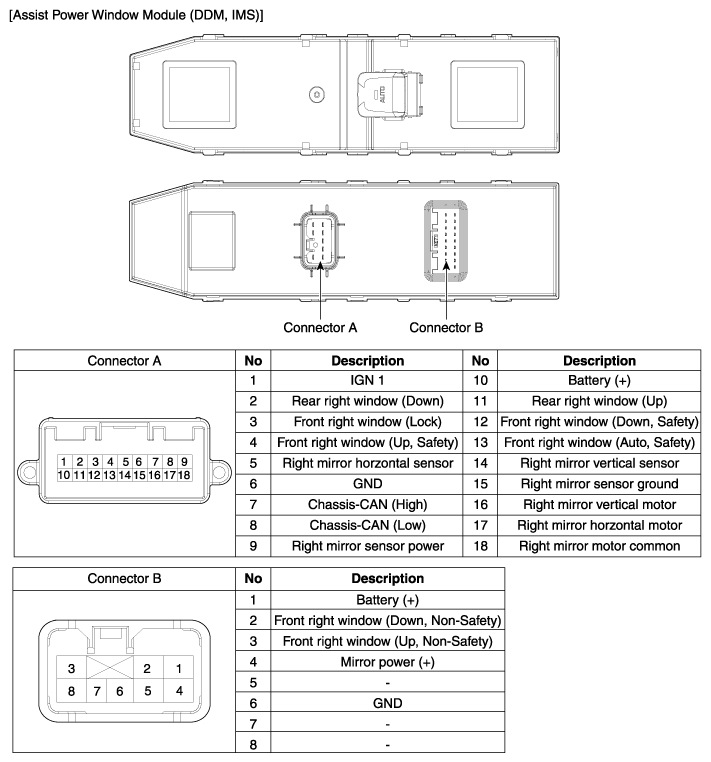

Fig 1: Assist Power Window Switch Connector Terminals Description Chart
Courtesy of HYUNDAI MOTOR AMERICA
