Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK Status INFO".

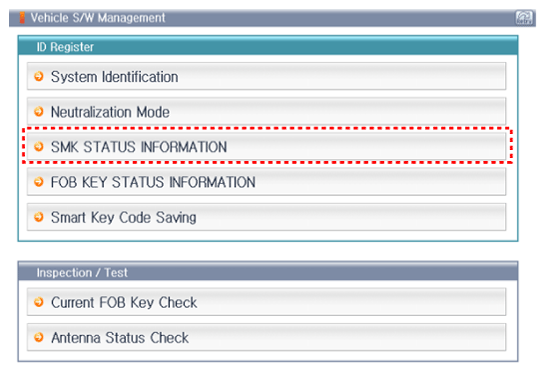

    Fig 1: Screen Display - SMK Status Information (1 Of 2)
    G11988614Courtesy of HYUNDAI MOTOR AMERICA

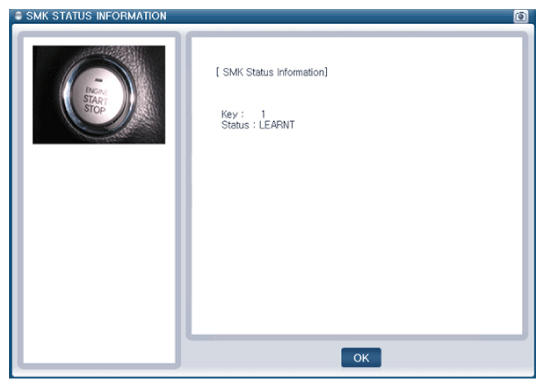

    Fig 2: Screen Display - SMK Status Information (2 Of 2)
    G11988615Courtesy of HYUNDAI MOTOR AMERICA
