Neutralization Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "Neutralization Mode".

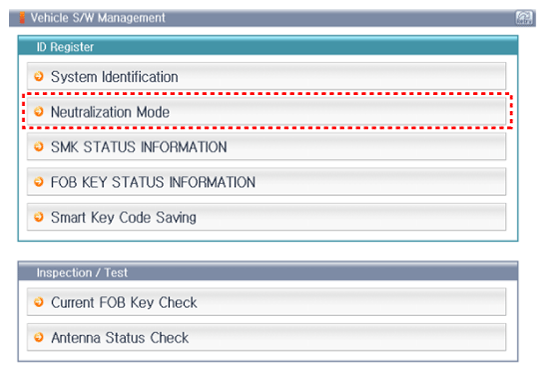

    Fig 1: Screen Display - Neutralization Mode (1 Of 2)
    G11988616Courtesy of HYUNDAI MOTOR AMERICA

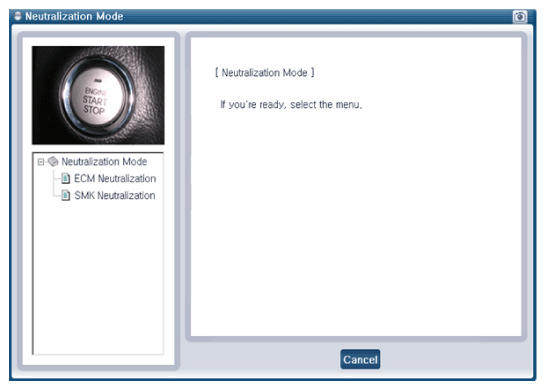

    Fig 2: Screen Display - Neutralization Mode (2 Of 2)
    G11988617Courtesy of HYUNDAI MOTOR AMERICA

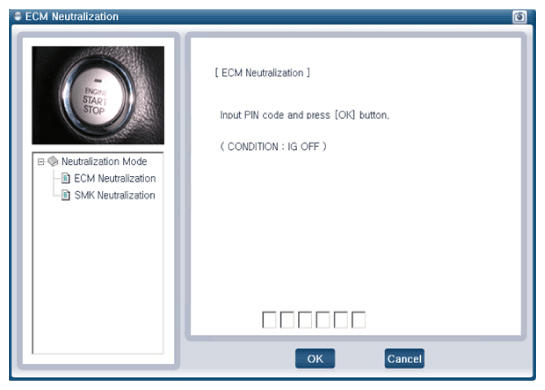

    Fig 3: Screen Display - ECM Neutralization
    G11988618Courtesy of HYUNDAI MOTOR AMERICA

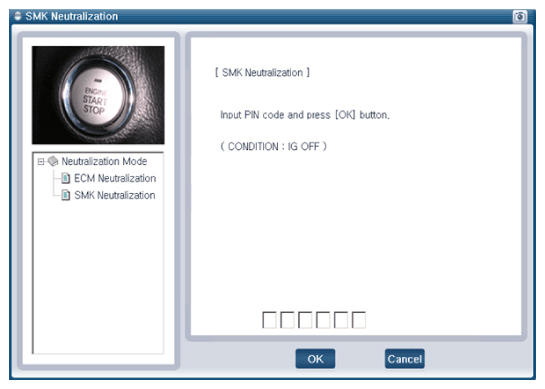

    Fig 4: Screen Display - SMK Neutralization
    G11988619Courtesy of HYUNDAI MOTOR AMERICA
