Component Location

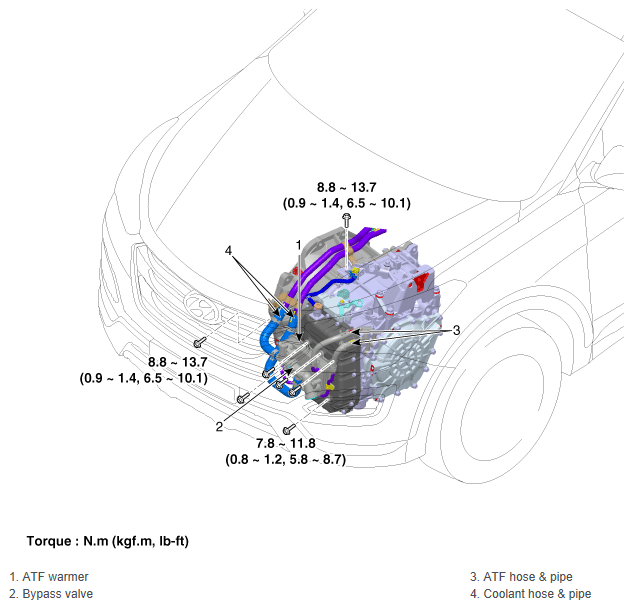

Fig 1: ATF Warmer Components Location With Torque Specifications (1 Of 2)
G12034206Courtesy of HYUNDAI MOTOR AMERICA

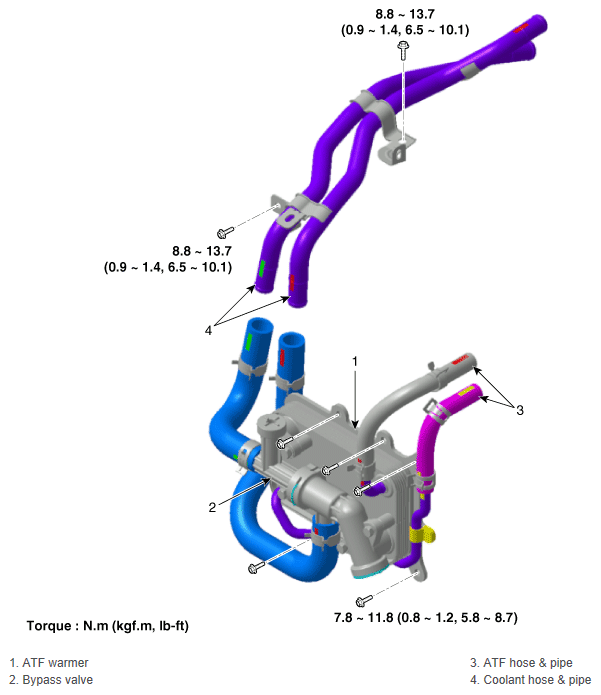

Fig 2: ATF Warmer Components Location With Torque Specifications (2 Of 2)
G12034207Courtesy of HYUNDAI MOTOR AMERICA
