Components And Components Location: Components

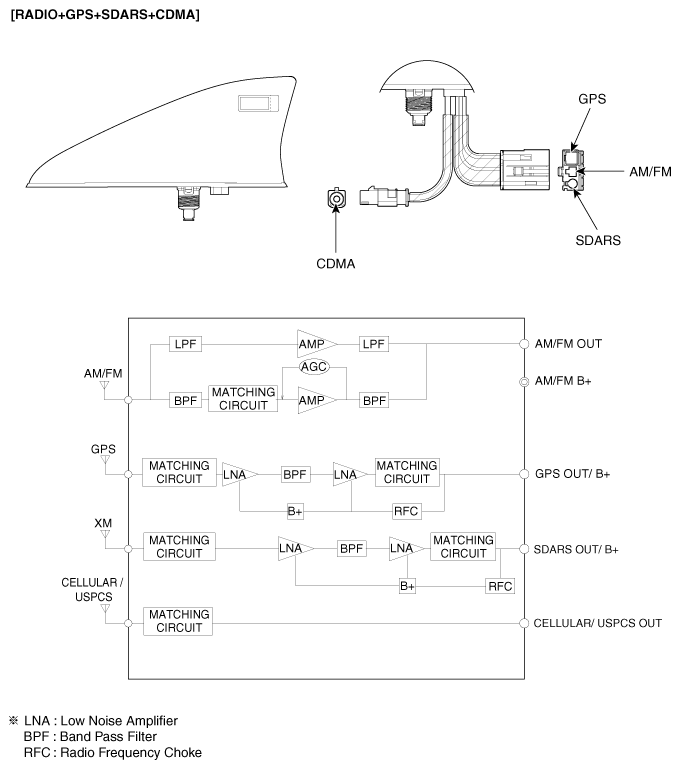

Fig 1: Antenna Circuit Diagram (1 Of 2)

G12035061

Courtesy of HYUNDAI MOTOR AMERICA

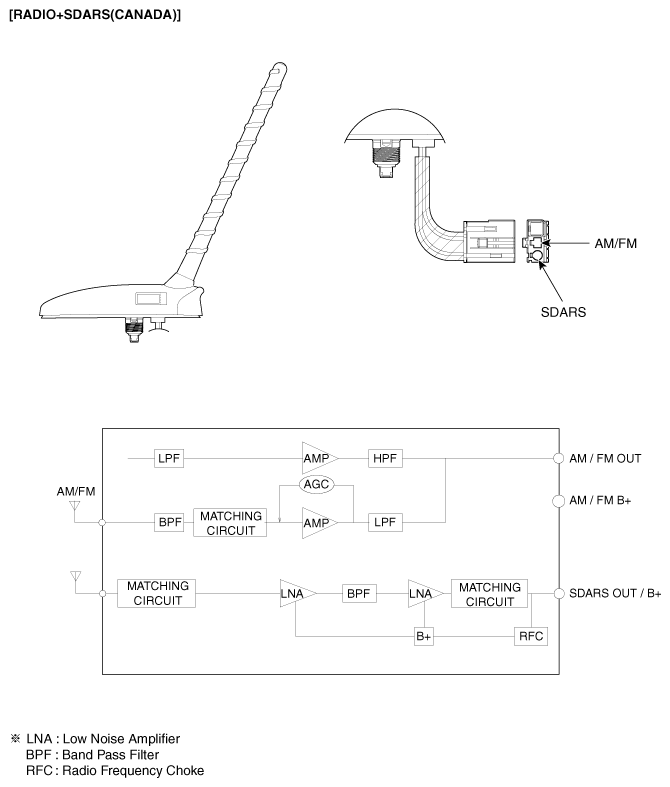

Fig 2: Antenna Circuit Diagram (2 Of 2)

G12035062

Courtesy of HYUNDAI MOTOR AMERICA
