Home >> Hyundai >> 2017 >> Santa Fe SE, AWD >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Restraints - General Information >> Components And Components Location >> Components

Components And Components Location: Components

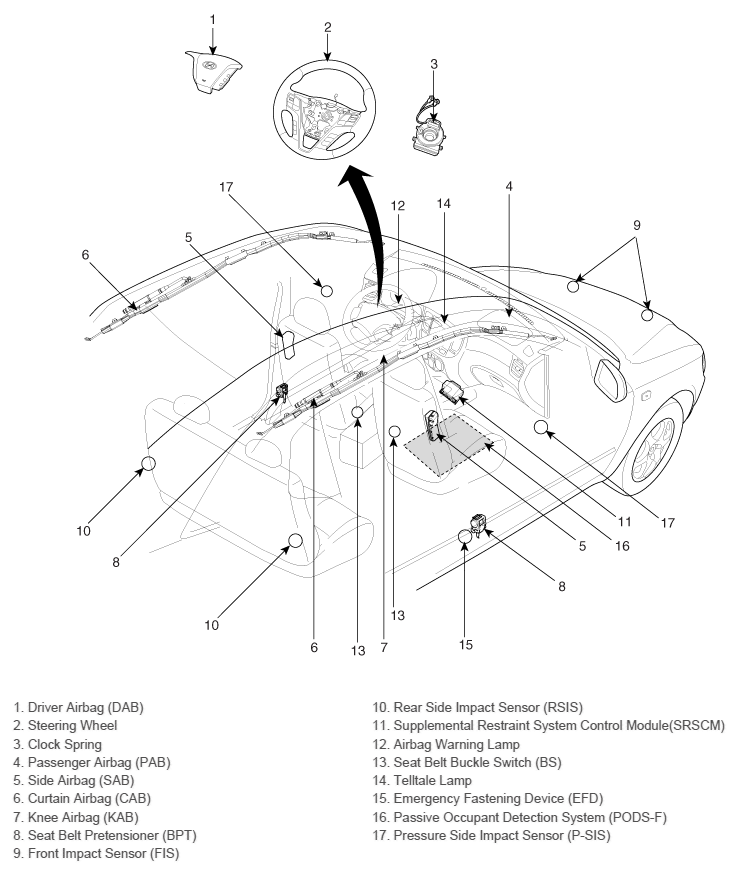

Fig 1: Restraint Components

G12033154

Courtesy of HYUNDAI MOTOR AMERICA
