Components And Components Location: Components

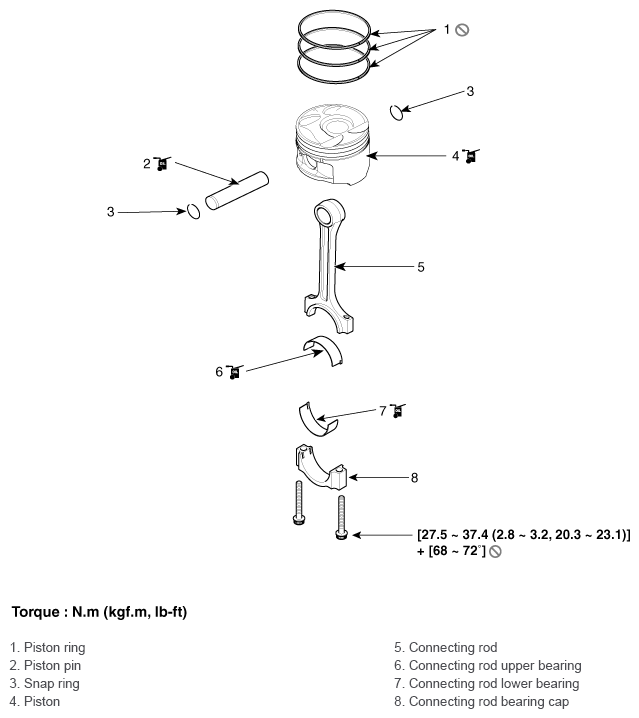

Fig 1: Piston And Connecting Rod Components With Torque Specifications

G12033607

Courtesy of HYUNDAI MOTOR AMERICA
