Components And Components Location: Components

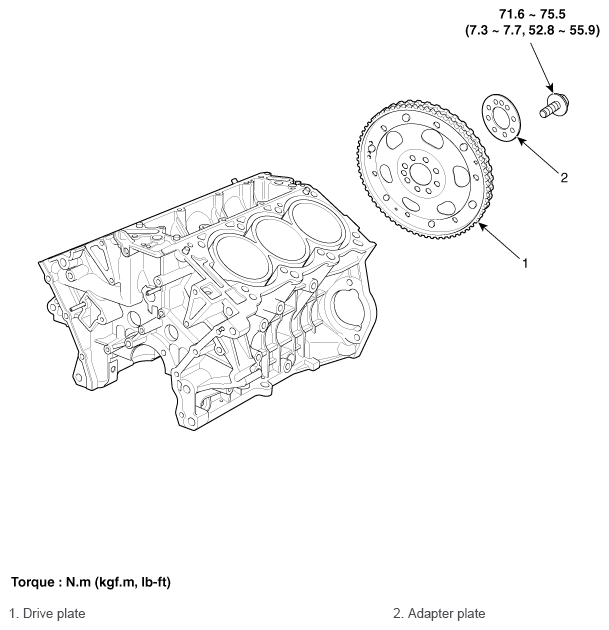

Fig 1: Drive Plate Components With Torque Specifications

G12033602

Courtesy of HYUNDAI MOTOR AMERICA
