Smart Key Status Check

WARNING: This page is about a different variant/trim than selected.
  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK Status Info".

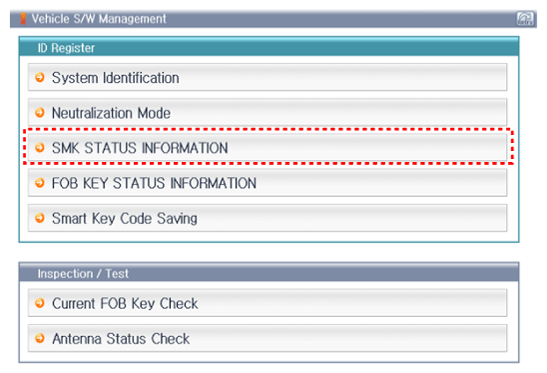

    Fig 1: Scantool Display - Vehicle S/W Management
    G12113358Courtesy of HYUNDAI MOTOR AMERICA

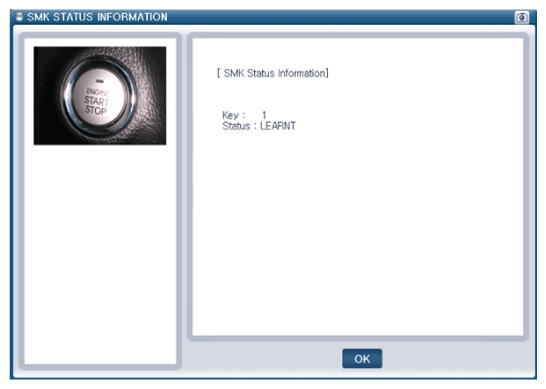

    Fig 2: Scantool Display - SMK Status Information
    G12113359Courtesy of HYUNDAI MOTOR AMERICA
